Detailed Information
Wide Measurement Range
The MP-3 has a wider range of stimulus intensity, from 0 to 34 dB, compared to the MP-1. The MP-3 measures perimetric threshold values, even for normal eyes. A maximum stimulus luminance of 10,000 asb* allows evaluation of low-sensitivity.
*Complies with the ISO 12866 requirements.

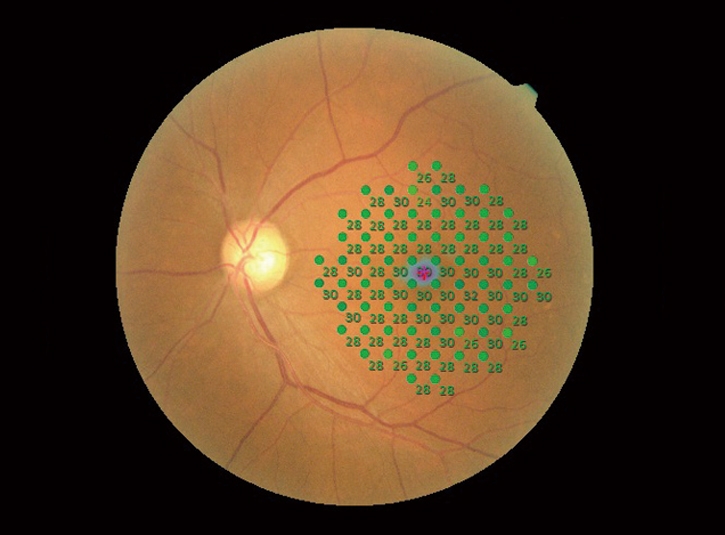

MP-3 Normal Eye Image(34dB)

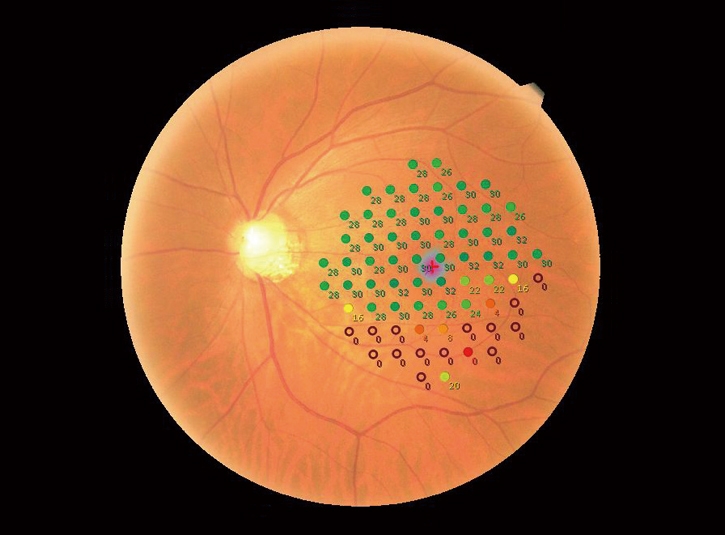

MP-3 Glaucomatous Eye Image(34dB)
Auto Tracking and Auto Alignment
Auto tracking and auto alignment functions provide more accurate measurements increasing patient and operator comfort and efficiency.
These functions allow easy follow-up and reduce variations between examiners, resulting in well-aligned follow up exams.
Fixation Test
The MP-3 can measure fixation and determine the preferred retinal locus, simply by having the patient fixate on a target. Any change in fixation can be compared pre- and post-treatment because the patient’s eye is constantly tracked during microperimetry. This test allows evaluation of fixation in patients with central visual field defects and determines whether fixation improved after treatment.

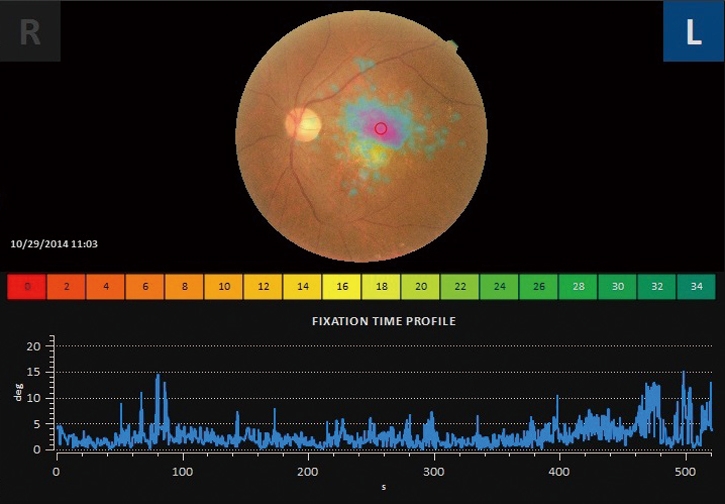

Fixation Test Image
High Resolution Non-Mydriatic Fundus Camera
The 12-megapixel fundus camera in the MP-3 acquires high resolution images of retinal pathology and allows easy image acquisition.
Fundus Camera Image

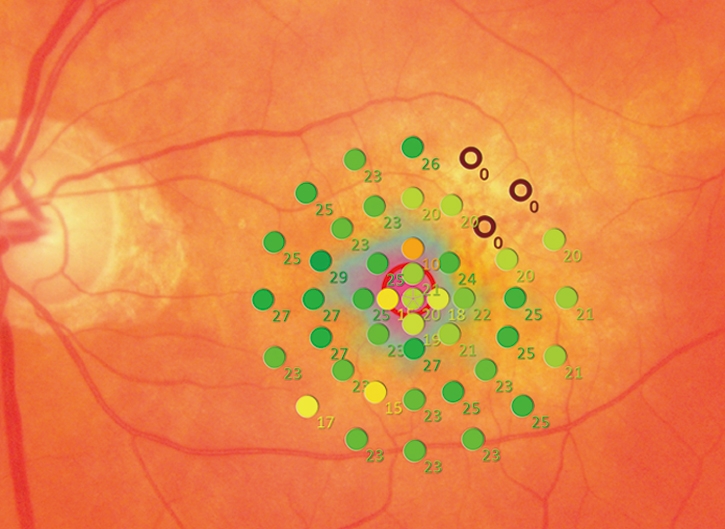

MP-3 Images of Pre- and Post-treatment Comparison
Case of anti-VEGF treatment for age-related macular degeneration （AMD）
Circle at 2° Percentage of fixation points 66.1%
Circle at 4° Percentage of fixation points 92.1%
Mean sensitivity: 20.4
Pre-treatment
Circle at 2° Percentage of fixation points 68.1%
Circle at 4° Percentage of fixation points 95.5%
Mean sensitivity: 20.9
Post-treatment
| Product / Model name | Microperimeter MP-3 |
|---|
