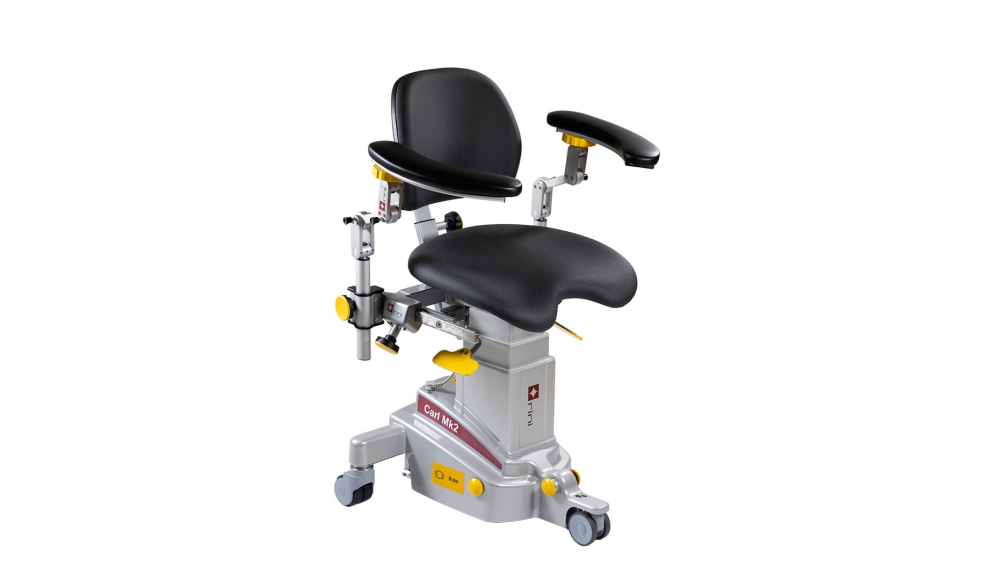

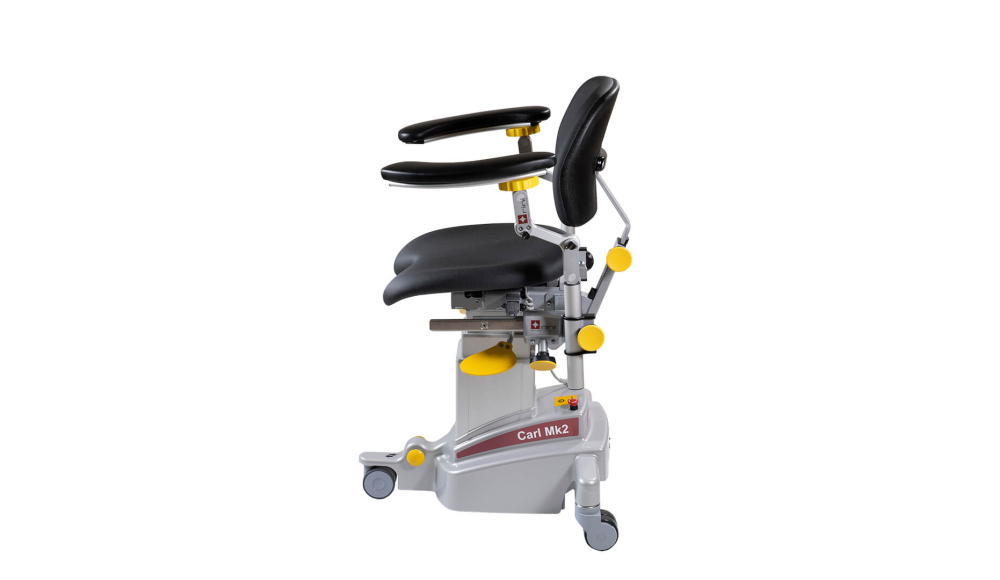

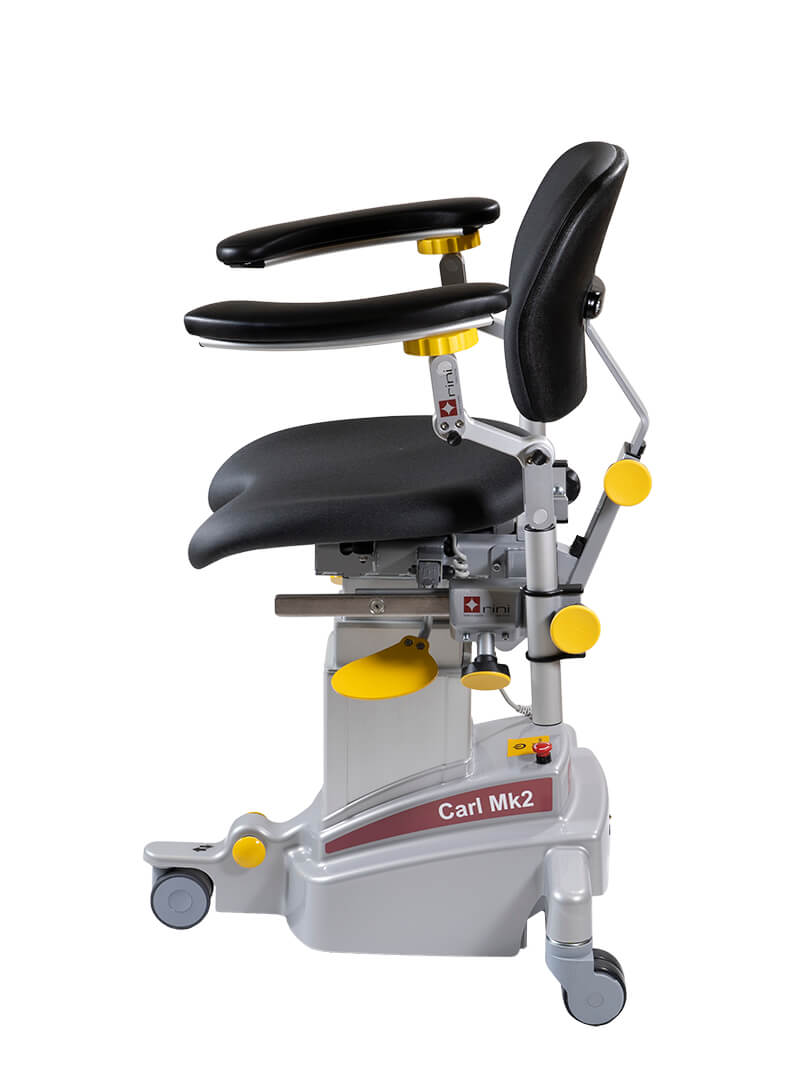

Surgeon chair — Carl Mk2 R6
The ”Rilis” armrests R6 have a patented safety feature which prevents them from being dislocated when under load. They are adjusted with buttons to the desired position with high degree of freedom. The Carl Mk2 R6 surgeon chair is especially adapted for various types of microsurgery such as Eye, ENT, Neuro, Plastic, Dental and Robot Surgery.
- Safety armrests with large adjustment possibilities that are controlled with buttons to the desired position
- Great accessibility for feet and equipment pedals through a uniquely designed undercarriage composing of three wheels
- Convenient to move thanks to easy-rolling wheels and a stable parking position by an electric braking system
- Easy to clean with smooth surfaces and encapsulated details
General
Weight of unit
43 kg
Wheel frame
Width 550 mm x Length 560 mm
Electric
Battery operation - Charger 100 - 240 V
Cushions
Vinyl - black or blue (standard) or other colors / materials as accessories
Operator
Lifting capacity
150 kg
Height adjustment
490 - 800 mm - foot control with push buttons on the side
Armrest
Model R6
”Rilis” armrest
Shape
Boomerang (standard) - other types to order
Adjustments
Height, angle and length with buttons
Backrest
Type
Standard H 350 mm x W 300 mm - other types to order
Adjustments
Angle -15° to +20°
Height adjustment
100 mm
Seat
Type
Standard L 420 mm x W 460 mm - other types to order
Inclination
Angle +5° to -15°
Brake
Type
Electric with one-button operation for the rear wheels
